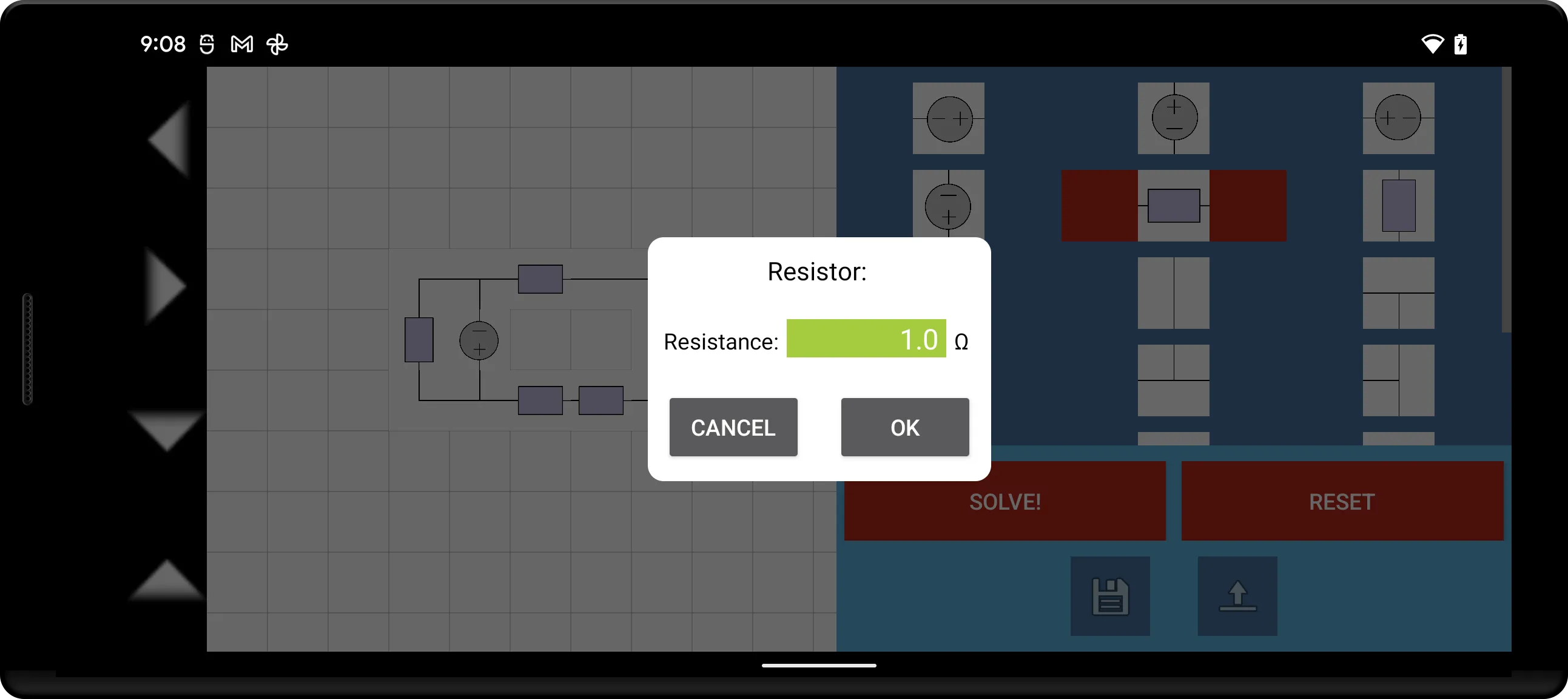

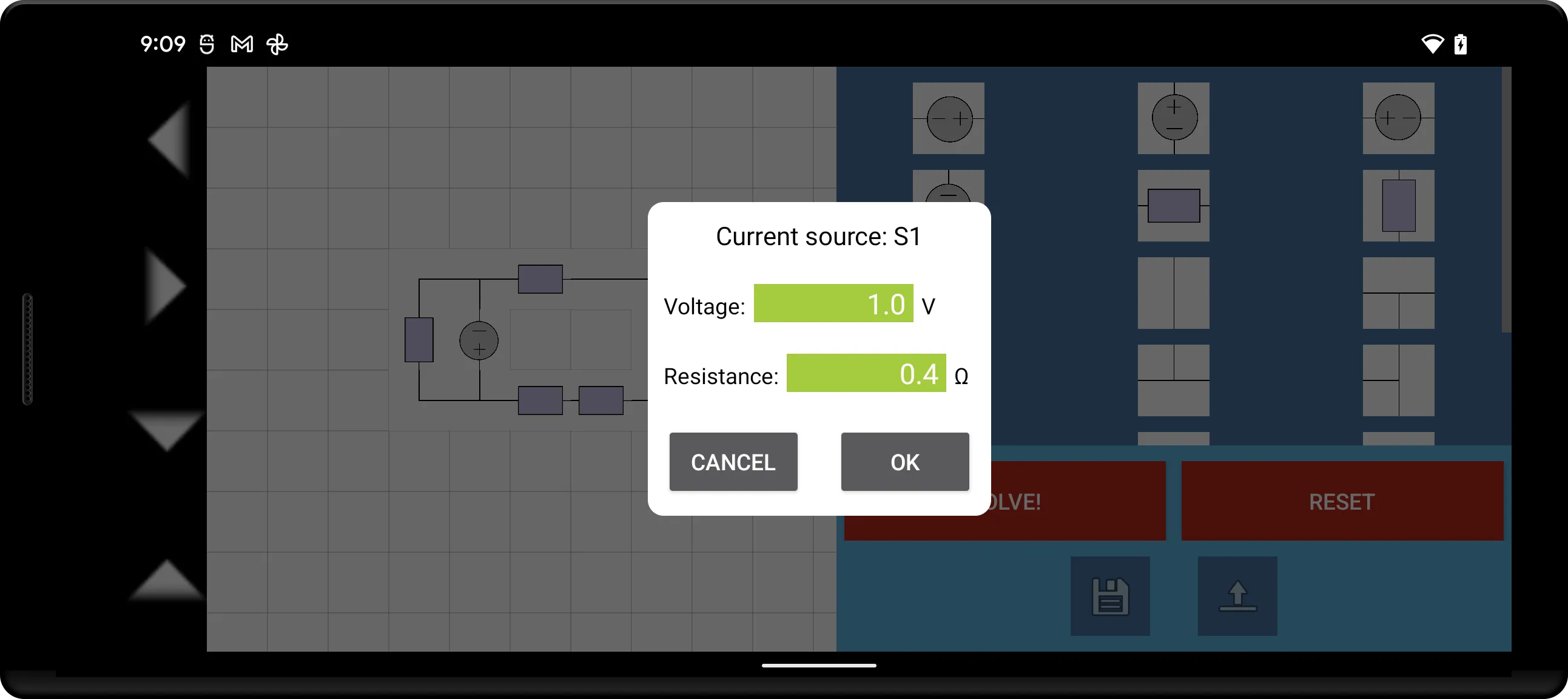

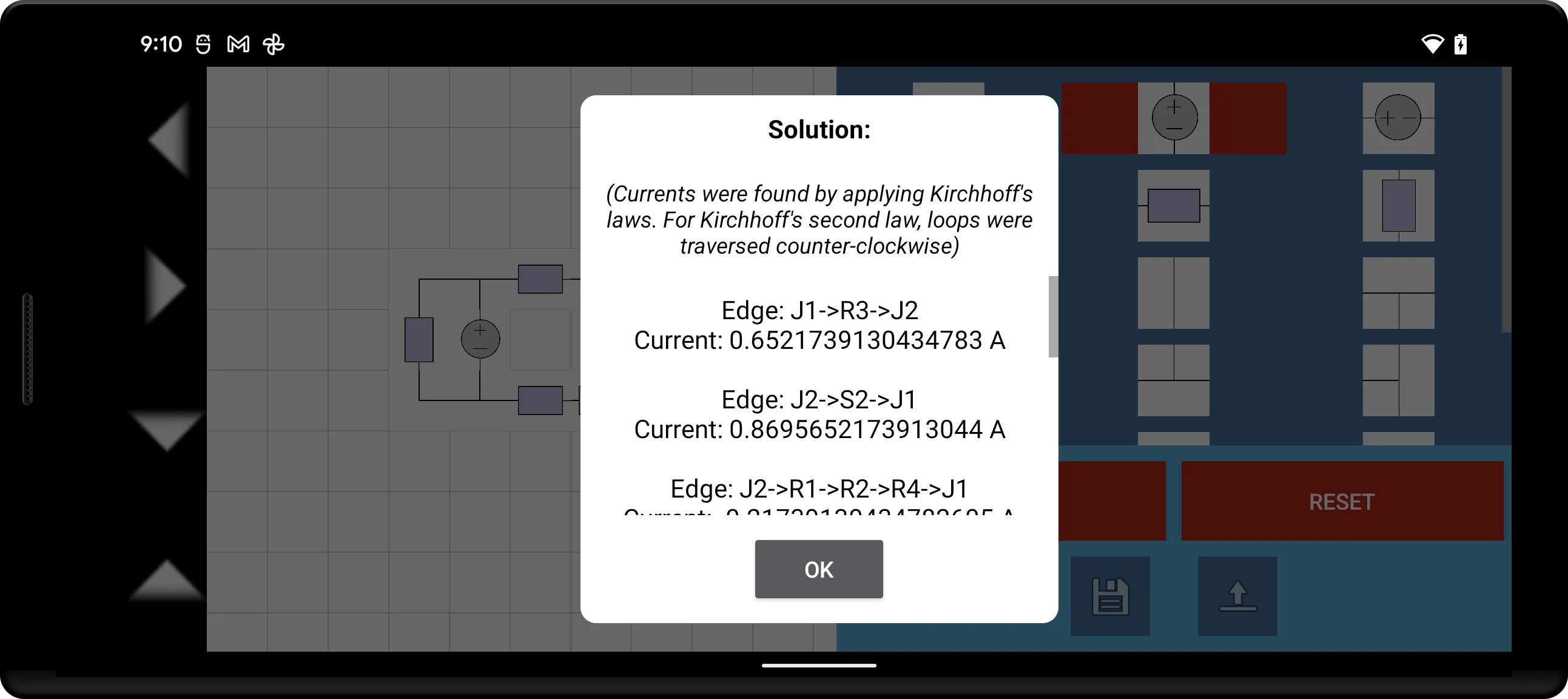

Design and solve a Direct Curent (DC) circuit with the following possible components: - oriented sources - resistors - junctions - wires For each source, please input the generated voltage and inner resistance. For each resistor, please specify the value of the resistance. No matter how complex your circuit, we find your currents and wattages! If the circuit is simple (single loop), we apply Ohm's law (U = R x I) and we find the current. Then we find the wattages with the formula P = U x I = R x I^2. If the circuit is complex, by applying graph algorithms to isolate simple loops in the circuit, and then using Kirchhoff's first and second law, we extract a system of linear equations whose variables are the very currents you want to know. Then we solve the system and show you the solution! For any questions or bug reports, please contact us by mail at [email protected]. Thank you!
